MECHANICAL CHAIN LIFTER
Things to know about the mechanical chain lifter
• Unique solution, which works completely mechanically and without springs
• Not limited in ejector stroke like other market solutions
• Can be used in the smallest space
Design and function
Here you can see an example of the mechanical chain lifter from AHP.
.jpg)

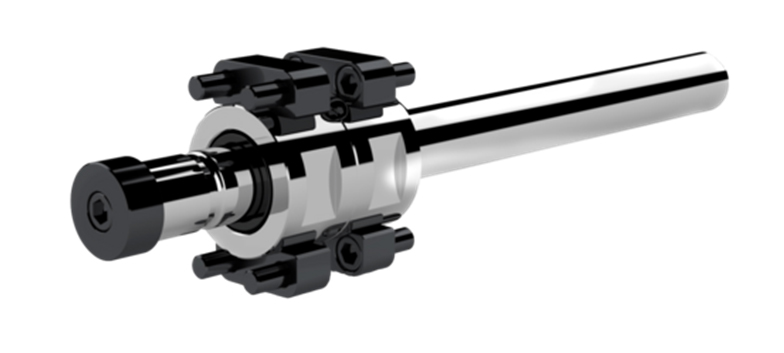

DOUBLE EJECTION SYSTEMS
Things to know about the Double ejection systems
• Covers 4 different plate movements
• Two-stage ejector can be integrated on or in the device
• Movement of ejector plates as well as other parting lines in the device, which must be moved in a specific sequence
• Covers 4 different plate movements
• Two-stage ejector can be integrated on or in the device
• Movement of ejector plates as well as other parting lines in the device, which must be moved in a specific sequence
Separate plate movements
Here you can see an example application as a latch locking unit and double ejector from AHP.
Joint plate movements
Here you can see an example application of the double ejector with the ejector plates in the rear position.
Synchronous ejector plate movements
Here you can see an example application of the double ejector with synchronous ejector plate movement with device opening.
